LumiBoard
- group name
- DigiFlex™ Pixel LED strip
- Min Order
- 1 piece
- brand name
- SunStone Custom Hardware Manufacturer
- Nearest port for product export
- TIANJIN, SHANGHAI, QINGDAO, LIANYUNGANG
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A
- update time
- Thu, 29 Jan 2026 21:35:47 GMT
Paramtents
Model NO. TLI015-51
Emitting Color Yellow, Cold White, White, RGB, Warm White
Wire 2wire, 3wire, 4wire
IP Rating IP20
Certification CCC, CE, C-tick, ETL, RoHS, SAA
LED Chips Brand CREE/Luminus/Citizen
Input Voltage 220-240V / 100-120V / 100-277V AC, 50-60Hz
Angle 25°X75°
Product Weight 0.6kg
Working Time (Hours) 50000
Packging & Delivery
-
Min Order1 piece
Briefing

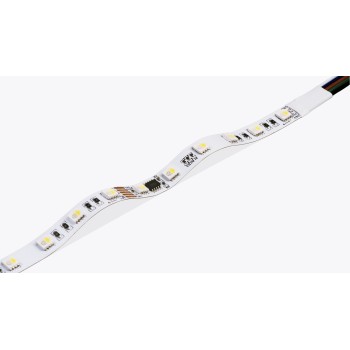

With high density LED chips mounted on FPC, the phosphor can be the CCT regulator and also the diffuser to create dot free lighting effect, it is high CRI and high efficacy, perfect for shallow profiles in under cabinet lighting applications.
Detailed
Specification
Model No.
LS-RGBW50N60-24-16512-192
Power
19.2W/m
PCB width
10mm
Lumen output (RGBW, W=4000K)
Total 950 Lm/m CRI80+
605 Lm/m RGB
420 Lm/m CRI 80+
360 Lm/m CRI 90+
320 Lm/m CRI 95+
MAXRUN
5m
LEDs/m
5050 RGBW 60LEDs/m
Cut Length
100mm (6LEDs)
CRI(White)
White CRI 80+~95+
CCT/Color
RGB R:620-625nm G:520-525nm B: 465-470nm / White 2400~6500K
Voltage 24V DC
Dimmable
Yes (SPI/DMX control system)
IP Rating IP20
Ambient temp.
-35°C ~ 50°C
Beam Angle
120°
Strip length/reel
0.5m ~ 50m
Lifespan
50,000Hrs
